Exposição de diodo emissor de luz de 7 segmentos

Customized Ultra White/Red 4-Digit 7-Segment LED Display Module for Electrical Meter Panels (Common Anode)

Customized Ultra White/Red 4-Digit 7-Segment LED Display Module for Electrical Meter Panels (Common Anode)

Nome da marca:	LIGHT-BO
Número do modelo:	LB6020IRW1B
MOQ:	1000
preço:	Negotiate
Condições de pagamento:	T/T, União Ocidental
Capacidade de abastecimento:	20000 PCs/dia

Informações pormenorizadas

Descrição do produto

Informações pormenorizadas

Lugar de origem:

Shenzhen, China

Certificação:

ISO9001&RoHS

Temperatura de armazenamento:

-35°C~+85°C

Tipo de produto:

Tecnologia SMD

Dimensão da tela:

Personalizado

Polaridade:

CC & CA

Tipo:

Padrão

Número do pino:

8 à esquerda + 16 à direita

Vantagem:

Alta eficiência, baixo consumo de energia

Cor do LED:

laranja

Cor do segmento:

Micky branco ou igual a emitir cor

Brilho:

12-230 mcd

Emitindo cor:

Vermelho brilhante super

Especificação:

22,5*14*7,2MM

Pixels:

Tipo de dígito:

Tipo de 4 dígitos

Detalhes da embalagem:

EPE + Caixa

Habilidade da fonte:

20000 PCs/dia

Destacar:

Customized 7-segment LED display module

Ultra white red 4-digit LED display

Common anode 7-segment display for meters

Descrição do produto

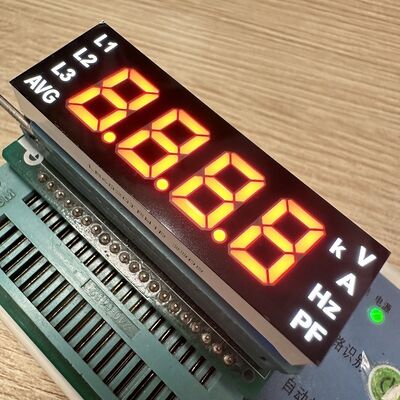

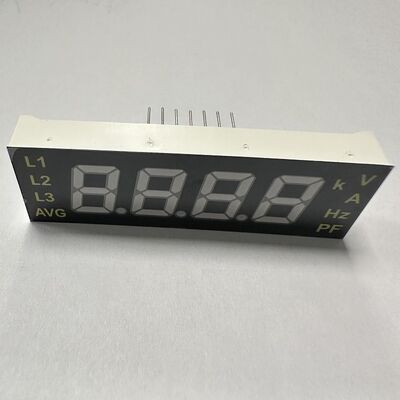

Customized Ultra White/Red 4-Digit 7-Segment LED Display Module for Electrical Meter Panels (Common Anode)

Tailored specifically for electrical metering scenarios, this 4-digit 7-segment LED display module is your ideal choice for precise, reliable digital readouts. Designed to seamlessly integrate into electricity meters, it combines ultra-bright illumination with stable performance, ensuring clear visibility even in dim or enclosed meter cabinets.

Key Specifications

Display Type: 4-digit 7-segment LED module (customizable)
Outer Dimensions: 60 × 20 × 8 mm (compact design for meter panels)
Digit Height: 14.2 mm (0.56 inch) - clear visibility from a distance
Polarity: Common Anode (optimized for meter control circuits)
Light Color: Ultra-bright white & red (custom colors available on request)
Compatibility: Fully compatible with standard driver ICs, easy to integrate

Core Advantages

• Superior Brightness: High-luminance output ensures easy readability in low-light meter enclosures or bright outdoor environments

• Uniform Light Distribution: Each segment glows evenly with no dark spots or uneven brightness

• Energy-Saving Design: Ultra-low power consumption and minimal current draw for long-term, 24/7 operation

• Exceptional Reliability: Built to withstand continuous use in harsh or temperature-fluctuating environments

• Flexible Customization: Available in multiple colors with compact form factor for standard meter panels

Application Scenarios

This module is specifically engineered for electrical metering systems, including:

Smart electricity meters (residential & industrial)
Energy monitoring devices
Utility control panels
Electrical measurement instruments
Industrial meter displays

Quality & Compliance

RoHS compliant, meeting international environmental standards
Rigorously tested for durability and long service life
Easy to install on PCBs, reducing production time and costs

Product Images

Delivery Time

Quantity (pieces)	1 - 100	101 - 1000	> 1000
Estimated Delivery Time (days)	5	15	pending

Absolute Maximum Ratings (Ta=25 ºC)

Parameter	Symbol	Ratings	Unit
Forward Current (per dice)	Ipm	20	mA
Reverse Voltage (per dice)	Vr	5	V
Power Dissipation (per dice)	Pm	80	mW
Operating Temperature Range	Topr	-40~+85	ºC
Storage Temperature Range	Tstg	-40~+85	ºC
Solder Temperature (≤3 seconds)	Th	260	ºC

LED Technical Parameters

Yellow Green (Code: J)

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.4	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	30		40	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	569		574	nm

Amber/Yellow (Code: Y)

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.5	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	60		80	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	585		595	nm

Orange (Code: F)

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.4	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	60		80	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	600		605	nm

Super Bright Red (Code: R)

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	50		60	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	630		635	nm

Ultra Bright Red (Code: UR)

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	80		100	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	625		635	nm

Pure Green (Code: G)

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.6		3.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	120		180	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	515		525	nm

Ultra Bright Blue (Code: BH)

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.8		3.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	120		140	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	460		465	nm

Ultra Bright White (Code: WH)

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.8		3.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	120		140	mcd
LED Color Temperature	K	If=10mA	5500	20	6800	K
Chromaticity Coordinates	X/Y	If=10mA	0.29,0.32		0.30,0.33	nm

Manufacturer Information

SHENZHEN GUANGZHIBAO TECHNOLOGY CO., LTD. (BRAND: LIGHT-BO)

Established in 2006, we are a company that integrates R&D, manufacturing and sales of optoelectronics LED Displays. ISO 9001:2015 Quality Management Systems certified company with more than 15 years OEM and ODM experience.

LIGHTBO has been committed to provide high quality and low cost customized solutions to help customers reduce cost and enhance competitiveness.

Products Applications

7 Segment LED Display, Customized LED Display, Numeric LED Display, Dot matrix LED Display, widely used for home appliances, temperature indicators, humidity indicators, refrigerator controller, thermostats indicator, heating and cooling control and more.
