Exposição de diodo emissor de luz de 7 segmentos

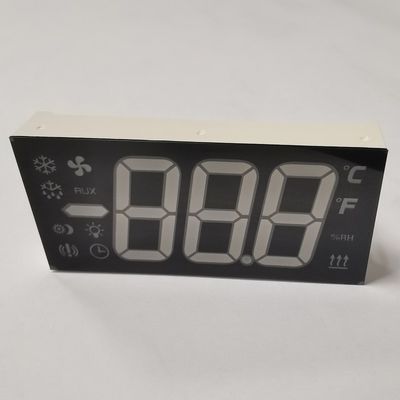

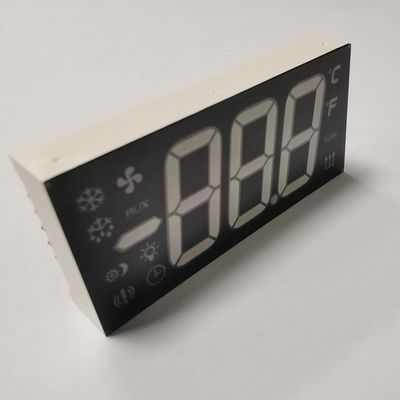

Blue 3 Digit 7 Segment LED Display for Refrigeration Control Panel

Blue 3 Digit 7 Segment LED Display for Refrigeration Control Panel

Nome da marca:	LIGHTBO
Número do modelo:	LB4722FBH1B-T6
MOQ:	1000
preço:	Negotiate
Condições de pagamento:	TT, União Ocidental
Capacidade de abastecimento:	50.000 unidades/dias

Informações pormenorizadas

Descrição do produto

Informações pormenorizadas

Lugar de origem:

ShenZhen,China

Certificação:

ISO9001&ROHS

polaridade:

Cátodo Comum

Pacote de Transporte:

EPE + Caixa

Cor do LED:

Vermelho

Localização:

Shenzhen

Altura do personagem:

9,92 mm (0,38")

Tensão de entrada:

1,7~2,6V

Temperatura de funcionamento:

-40°C a +85°C

Dimensão:

49*15*8 mm

consumo de energia:

Baixo consumo de energia

Dimensão de contorno:

30.1*16*7mm

Classificação IP:

IP54

Altura digital:

20.32 mm (0,80 polegadas)

Altura do dígito:

0.23 polegadas

Pacote:

MERGULHAR

Tipo:

Padrão

Recurso:

Dissipação de calor rápida de dois dígitos

Uso:

Indoor,Outdoor,Indoor/Outdoor,office,outdoor e indoor

Cor do chip do tubo:

Cor completa, vermelho, verde, branco, azul

Dimensão da tela:

Tamanho personalizado, 12,7x7,6x7mm,50,4*19,0*8,1mm,113mm*29mm,28,8*40,8mm

Função de exibição:

Gráficos, Animação, Vídeo, numeral 0-9, temperatura

Pixels:

10mm,7mm,25mm,8,0,10,20mm

Cor:

Azul, amarelo, verde, vermelho, branco

Brilho:

Escurecimento automático por sensor de luz, 4000,7000cd/sqm, 5000 ~ 6500mcd, alto brilho

Garantia:

2 anos, 1 ano

Nome do produto:

Tela de exibição led de 7 segmentos hd p6 de vídeo quente, display led de 7 segmentos, painel de exi

Aplicativo:

Equipamento eletrónico de escritório,aparelhos domésticos,etc.,LED de publicidade ao ar livre,public

Nome:

Display LED de gasolina para estação de preços, pequeno sete segmentos, 3 dígitos, 0,2 polegadas, 7

Temperatura operacional:

-35 ~ +85 ℃,-20 +85,-40~80 ℃,-45-80℃

Vida útil:

100.000 horas, 10.000 horas, mais de 50.000 horas

Tensão:

DC12V,90~120V/220~240V (com base na necessidade dos clientes)

Emitindo cor:

Azul, amarelo, verde, branco, vermelho

Altura do dígito:

0,2 polegadas, 1,5,1,2,0,38,0,5

chip LED:

Epistar,InGan,AlGanlp

OEM:

Sim

Detalhes da embalagem:

EPE + Caixa

Habilidade da fonte:

50.000 unidades/dias

Destacar:

blue 3 digit 7 segment LED display

7 segment LED display for refrigeration

refrigeration control panel LED display

Descrição do produto

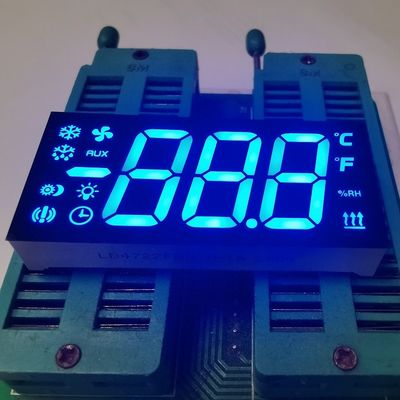

Blue 3 Digit 7 Segment LED Display for Refrigeration Control Panel

Product Overview

High-quality blue 3-digit 7-segment LED display specifically designed for refrigeration control panels and temperature monitoring applications.

Package dimension: 10×13×7mm
Character height: 9.9mm (0.39 inch)
Polarity: Common cathode
Color: Super bright blue
Face color: Black/Grey
Wavelength: 630-635nm
Luminous intensity: 50-60mcd/dice
Forward voltage: 1.8-2.2V/led
Available colors: red, blue, yellow green, pure green, white, amber, orange, and yellow

Absolute Maximum Ratings (Ta=25°C)

Parameter	Symbol	Ratings	Unit
Forward Current (per dice)	Ipm	20	mA
Reverse Voltage (per dice)	Vr	5	V
Power Dissipation (per dice)	Pm	80	mW
Operating Temperature Range	Topr	-40~+85	°C
Storage Temperature Range	Tstg	-40~+85	°C
Solder Temperature (≤3 seconds)	Th	260	°C

Electrical Characteristics by Color Code

Yellow Green - J

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.4	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	30		40	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	569		574	nm

Amber/Yellow - Y

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.5	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	60		80	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	585		595	nm

Orange - F

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.4	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	60		80	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	600		605	nm

Super Bright Red - R

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	50		60	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	630		635	nm

Ultra Bright Red - UR

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	80		100	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	625		635	nm

Pure Green - G

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.6		3.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	120		180	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	515		525	nm

Ultra Bright Blue - BH

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.8		3.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	120		140	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	460		465	nm

Ultra Bright White - WH

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.8		3.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	120		140	mcd
LED Color Temperature	K	If=10mA	5500	20	6800	K
Chromaticity Coordinates	X/Y	If=10mA	0.29,0.32		0.30,0.33	nm

Product Applications

7 Segment LED Display, Customized LED Display, Numeric LED Display, Dot matrix LED Display, widely used for home appliances, temperature indicators, humidity indicators, refrigerator controller, thermostats indicator, heating and cooling control systems.

Certifications

Office and Factory Overview

Company Exhibitions

Shipping Services

Frequently Asked Questions

Q1: Are you a trading company or manufacturer?

We are original manufacturers with more than 20 years of experience in optoelectronic LED displays.

Q2: What are your main products?

Our main products include 7 Segment LED display, SMD LED Display, Dot matrix LED Display, Arrow LED display, Custom Design LED Display, LED light bar, Through hole LED, SMD LEDs, LED Backlights, and more.

Q3: What is your MOQ?

Our MOQ is 1000 pieces. We can also accept sample orders and small orders with quantities less than our MOQ.

Q4: Before placing an order, can I get some samples for testing?

Yes. We can provide 5-10 free samples for your testing, but the freight cost will be borne by the customer.

Q5: How long is your delivery time?

Delivery time: About 10-20 days, depending on order quantity and raw materials. For urgent orders with available raw materials, we can adjust our production plan to complete within 7-10 days.

Q6: What are your payment terms?

We accept bank transfer, T/T, Western Union, and PayPal for small amounts. Payment method details are negotiable.

Q7: Can you quote FOB prices?

Yes. We can quote prices based on incoterms EXW, FOB, CIF, and DDP.

Q8: How can I get your catalog and price list?

Please provide your email address or contact us directly through our website for our catalog and price list.

Q9: Can I negotiate the prices?

Yes, we may consider discounts for bulk orders.

Q10: How much will the shipping charges be?

Shipping charges depend on shipment size and shipping method. We will provide charges based on your requirements.

Q11: Can you do custom design products?

Yes, OEM & ODM services are available. We can customize sizes, LED colors, and functional icons according to your requirements.

Q12: If I send my design, can you make it exclusively for me and not show it to anyone else?

Yes, we will not show or sell your design to others without your authorization.

Q13: What is the sample lead time for customized products?

Sample lead time is approximately 20-25 working days after receiving mold cost and mold drawing approval from customers.

Q14: What are the shipping methods?

We typically ship via DHL, FedEx, UPS, EMS, by air, or by sea. You can also choose other shipping methods that work best for you.

Q15: How do you ensure product quality?

We are ISO 9001 QMS certified manufacturers with over 20 years of experience. We conduct twice 100% testing of all products before shipment.
