Exposição de diodo emissor de luz de 7 segmentos

3 Digit Common Cathode 7-Segment LED Display for Home Application

3 Digit Common Cathode 7-Segment LED Display for Home Application

Nome da marca:	Light Bo
Número do modelo:	LB30361LY0B
MOQ:	1000
preço:	Negotiate
Condições de pagamento:	T/T
Capacidade de abastecimento:	50000 PCS/day

Informações pormenorizadas

Descrição do produto

Informações pormenorizadas

Lugar de origem:

Shenzhen, China

Certificação:

ISO9001&RoHS

Package_type:

DIP ou SMD

Corrente direta:

10-15mA/sota

Emitindo Cor:

vermelho ultra brilhante

Vida útil:

100.000 horas

Emissão de cores:

Âmbar ultra brilhante

SERVIÇO:

OEM / ODM aceitável

Tensão reversa:

Meios de transporte:

Oceano

Brilho da Tela:

Brilho:

12 - 220 mcd

Número_de_dígitos:

1 a 8 dígitos

Tipo:

Padrão

Segment_Color:

Vermelho, verde, azul, amarelo, branco

Superfície:

Superfície negra de segmento branco

Intensidade luminosa:

80-100mcd

Detalhes da embalagem:

EPE+Carton

Habilidade da fonte:

50000 PCS/day

Destacar:

3 digit common cathode LED display

7 segment LED display for home

common cathode 7 segment display

Descrição do produto

3 Digit Common Cathode 7-Segment LED Display for Home Application

This standard 3-digit 7-segment LED display from Light-Bo is engineered for compact, high-visibility numeric readouts in ceramic electric cooktops, home appliances, and digital indicators. Featuring a 0.36-inch (9.2mm) character height and space-saving package dimensions (22.5×14×7.2mm), it fits seamlessly into slim device enclosures—ideal for tight spaces in cooktops or instrument panels.

Key Specifications

Brand Name	Light-Bo
Type	Standard 3 digit 7-segment LED display
Dimensions	22.5×14×7.2mm
Polarity	Common Cathode
Emitting Color	Ultra bright Yellow
Core Performance	High luminous intensity, low current operation, continuous uniform segments
Compliance	RoHS Compliant

Core Product Features

Compact Design & High Visibility

22.5×14×7.2mm Miniature Profile: Perfect for space-constrained applications like ceramic electric cooktops or compact home appliances.
Ultra Bright Yellow Emission: Delivers high luminous intensity to cut through ambient light, ensuring digits remain readable at a glance.
Continuous Uniform Segments: Light spreads evenly across all 7 segments, eliminating dark spots for clear value recognition.

Efficient & Reliable Operation

Low Current Operation: Minimizes energy consumption for 24/7 operated devices and energy-efficient appliances.
Stable Performance & Long Lifetime: Built to withstand temperature fluctuations and frequent use, reducing maintenance needs.
IC Compatibility: Works seamlessly with standard display driver ICs, simplifying circuit design.

Easy Integration

Simplified Mounting: Designed for hassle-free installation on PCBs and sockets, streamlining assembly for high-volume manufacturing.

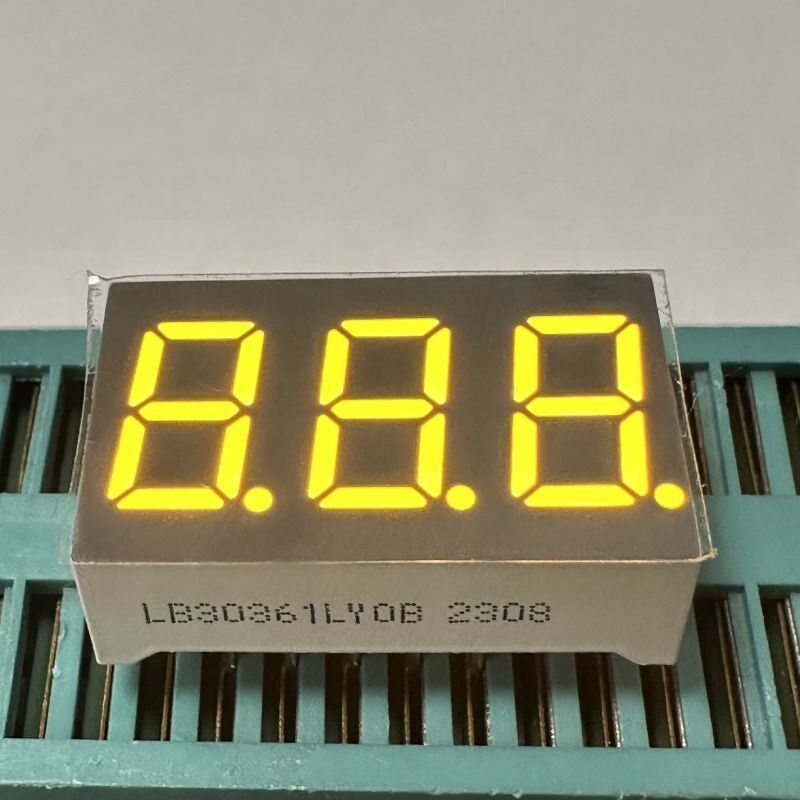

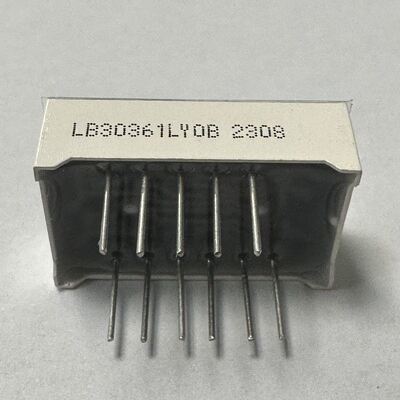

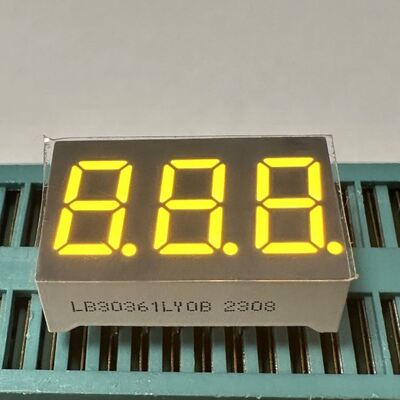

Product Images

Technical Specifications

Absolute Maximum Ratings (Ta=25°C)

Parameter	Symbol	Ratings	Unit
Forward Current (per dice)	Ipm	20	mA
Reverse Voltage (per dice)	Vr	5	V
Power Dissipation (per dice)	Pm	80	mW
Operating Temperature Range	Topr	-40~+85	°C
Storage Temperature Range	Tstg	-40~+85	°C
Solder Temperature (≤3 seconds)	Th	260	°C

Electrical Characteristics by Color Code

Yellow Green (J)

Parameter	Symbol	Condition	Min	Max	Unit
Forward Voltage	Vf	If=10mA	1.8	2.4	V
Reverse Voltage	Vr	Ir=10uA	5		V
Luminous Intensity	Iv	If=10mA	30	40	mcd

About Light-Bo

Shenzhen Guangzhibao Technology Co., Ltd. (Brand: Light-Bo) was established in 2006 and is a company that integrates R&D, manufacturing and sales of optoelectronics LED Displays. We are ISO 9001:2015 Quality Management Systems certified with more than 15 years OEM and ODM experience.

Light-Bo has been committed to providing high quality and low cost customized solutions to help customers reduce costs and enhance competitiveness.

Applications

7 Segment LED Display, Customized LED Display, Numeric LED Display, Dot matrix LED Display, widely used for home appliances, temperature indicators, humidity indicators, refrigerator controllers, thermostat indicators, heating and cooling control systems.

Frequently Asked Questions

Q1: Are you a trading company or manufacturer?

We are an original manufacturer with more than 20 years experience in optoelectronic LED displays.

Q2: What is your main products?

Our main products include 7 Segment LED display, SMD LED Display, Dot matrix LED Display, Arrow LED display, Custom Design LED Display, LED light bar, Through hole LED, SMD LEDs, LED Backlights, and more.

Q3: What is your MOQ?

Our MOQ is 1000 pcs. We can also accept sample orders and small orders with quantity less than our MOQ.

Q4: Before placing order, can I get some samples for test?

Yes. We can provide 5-10 free samples for your testing, but the freight cost will be borne by the customer.

Q5: How long is your delivery time?

Delivery time: About 10-20 days, depending on order quantity and raw materials. For urgent orders with available raw materials, we can adjust production to deliver within 7-10 days.
